Lens Ring Joint Gasket
Product Description
Product Detail
Description:
KXT-G1840 lens ring joints' highest pressure used is 3000atm,they have been used on pipe flanges in synthesizing line of ammonia and methand at high pressure and high temperature,in high pressure polymerizing line of polyethylene at 3000 atm.
Application:
KXT-G1840 is suitable to sealing of flanges at high temperature and pressure pipings It is widely applied in petroleum processing,oil refining ,electricity generated by firepower,textile and other light industries,pharmacy ,pipeline of nature gas,valve etc.Note：
The material of the oval ring jont gasket must be 15~20HB lower than the hardness of flange,and this kind of gaskets is non-recyclable.

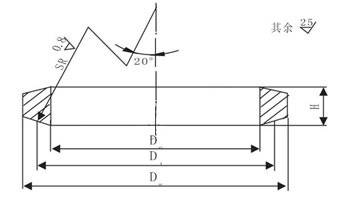

The cross section
Available Material:
|
Material |
Maximum Hardness |
Temperature（ ℃ ） |
Abbreviations |
|
|
Brinell |
Rockwell“B”Grade |
|||
|
Soft Iron |
90 |
56 |
-60～500 |
D |
|
Low Carbon Steel |
120 |
68 |
-40～540 |
S |
|
SS304 |
160 |
83 |
-250～540 |
304 |
|
SS304L |
160 |
83 |
-250～540 |
304L |
|
SS316 |
160 |
83 |
-200～815 |
316 |
